1. In listing each option is peak discharge current

2. For this BMS, when charging, the value displays +, when discharging, the value displays –

Support

10S -24S li-ion battery (30V-102V Lithium battery cell)
13S -24S lifePo4 battery (30V-88V Lithium iron phosphate battery cell)
15S -24S LTO battery (30V-68V Lithium titanate battery cell)

Description

The options in the list are peak discharge current

Charging current: 50A
Balance current: 200MA

10S-24S 125A(Continuous current: 50A, Peak current: 125A)
10S-24S 200A(Continuous current: 80A, Peak current: 200A)
10S-24S 275A(Continuous current: 110A, Peak current: 275A)

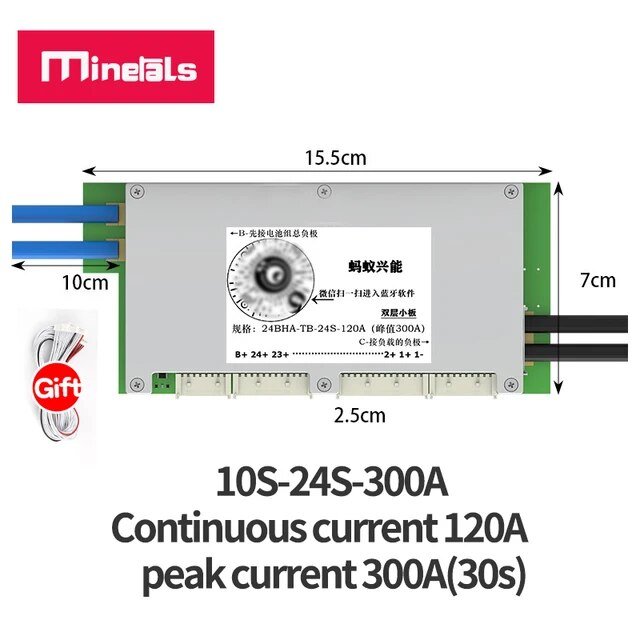

10S-24S 300A(Continuous current: 120A, Peak current: 300A)
10S-24S 450A(Continuous current: 180A, Peak current: 450A)
10S-24S 500A(Continuous current: 200A, Peak current: 500A)
10S-24S 550A(Continuous current: 220A, Peak current: 550A)

Support cells :Support Li-ion , Lipo , 18650, Lifepo4 , LTO and so on

Voltage accuracy :Single cell voltage detection range (1.5-4.6V), so support a variety of cell use, accuracy error within 3 mV
Drop wire protection :detect wire not weld well and cause the voltage is wrong.balance wire drop cell protection
Overcharge protection: Connect to Bluetooth to set high-precision detection voltage, single overcharge protection and total voltage overvoltage protection
Over discharge protection : Connect Bluetooth to set up high-precision detection voltage, single-cell over-discharge protection and total voltage under-voltage protection
Short circuit protection: Can be connected to Bluetooth to set the short circuit protection value, change to 0 is turn off short circuit protection
Overcurrent protection: can be connected to Bluetooth to set up the overcurrent protection value (maximum 300A)
Current detection: within the current range of the purchased protection board
Temperature control protection: The protection board has built-in balanced temperature control, power temperature, and can be connected with 4 temperature controls to prevent high temperature danger.
balance current: 200 mA, high voltage versus low voltage discharge balance
Discharge current: refer to the current in the purchase selection as the peak discharge current
Coulomb counter: compensation 1-24S battery connection between the chip resistance is too long, causing the wire resistance to be too large, the cell voltage is too large during the charging and discharging, can not be used normally
Connection internal resistance: based on current to time scoring, accurately calculate the remaining battery
