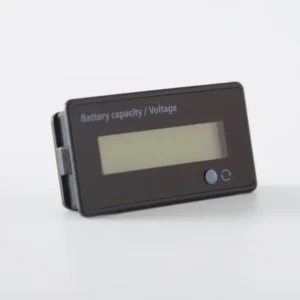

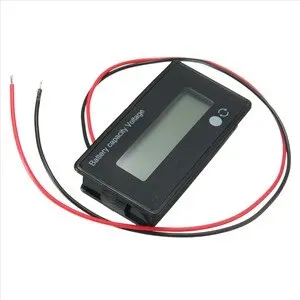

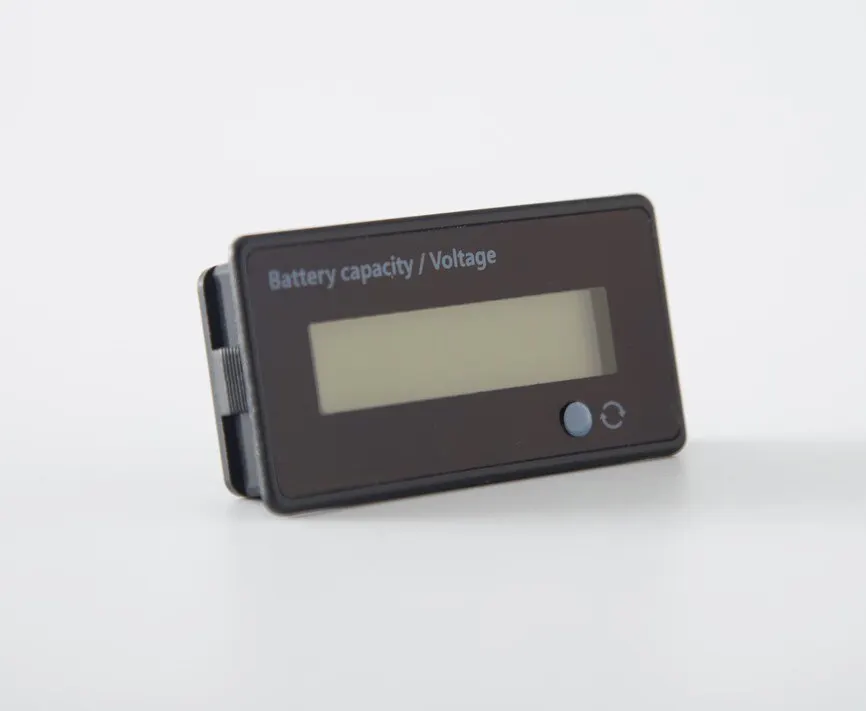

Features:
- Suitable for lead acid, lithium battery, lifepo4, nickel hydrogen battery

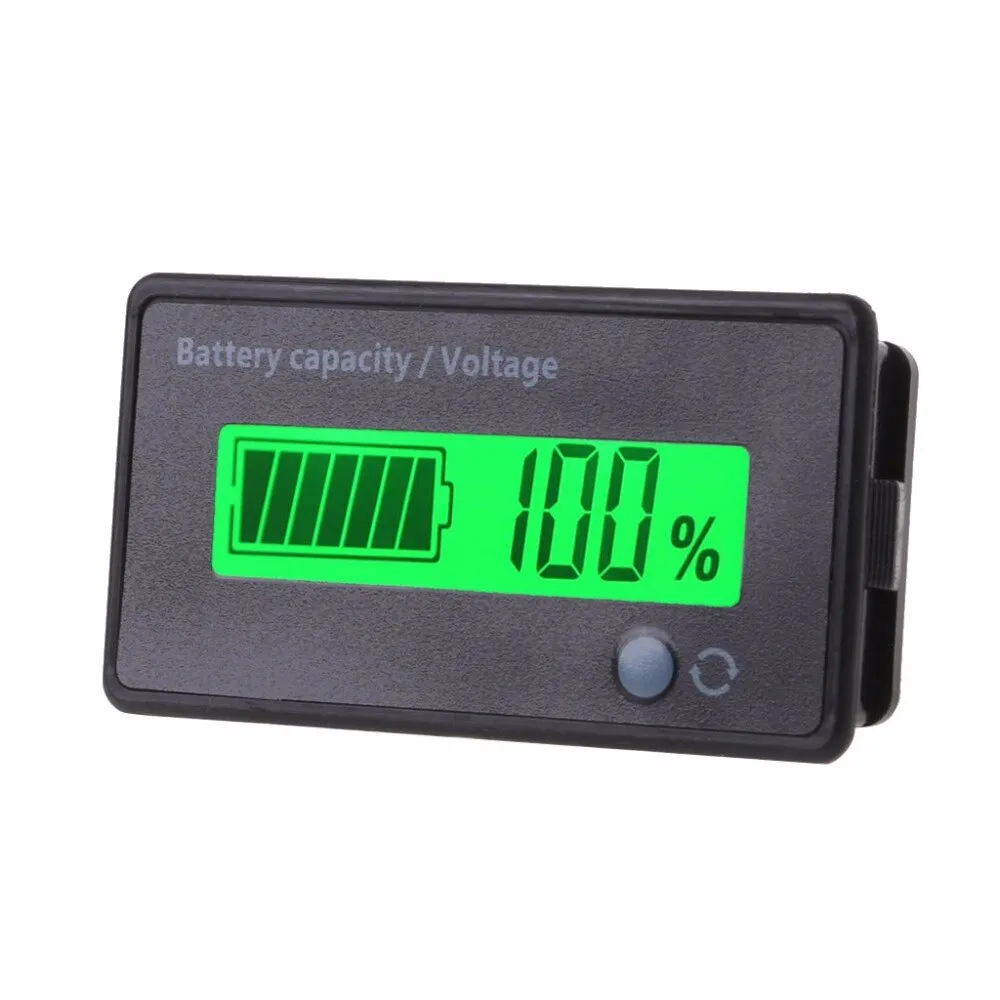

- Display percentage remaining power, voltage value
- 9-100V wide voltage input
- Simple installation
Specifications
- Product size： 61.3*33.3*13.5 mm
- Operating voltage：9 to 100 V
- Working current：5mA
- Working temperature -10 ~65 °C
- Weight: 20g
Battery usage range:
- Lead-acid battery: 12V 24V 36V 48V…84V
- Lithium battery: 3 strings 4 strings…28 strings
- Lithium iron battery: 4S-28S
- The above is common, you can set it yourself

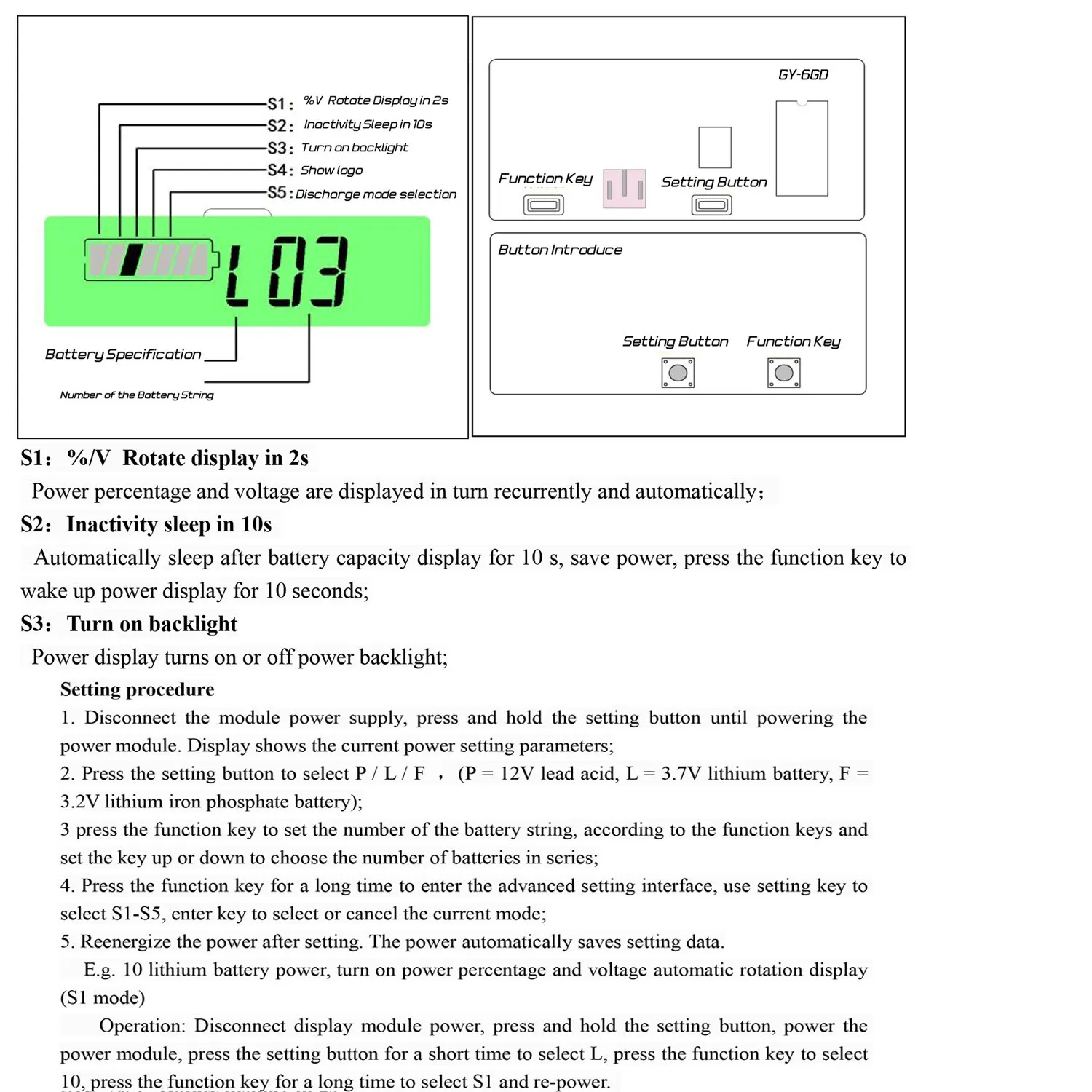

Setting steps:
- Press and hold the setting button to power the battery indicator and enter the setting page
- Press and hold for a short time to select battery specifications: lead-acid batteries, lithium batteries, etc.
- Hold down for a long time, set S mode, select the corresponding mode,
-
After setting, power on again and use it.
